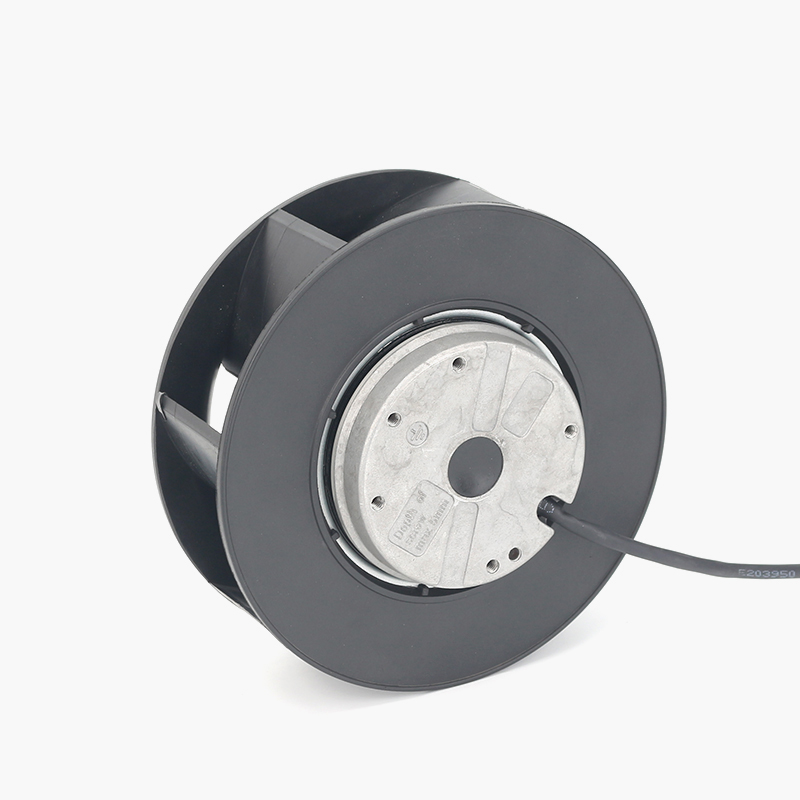

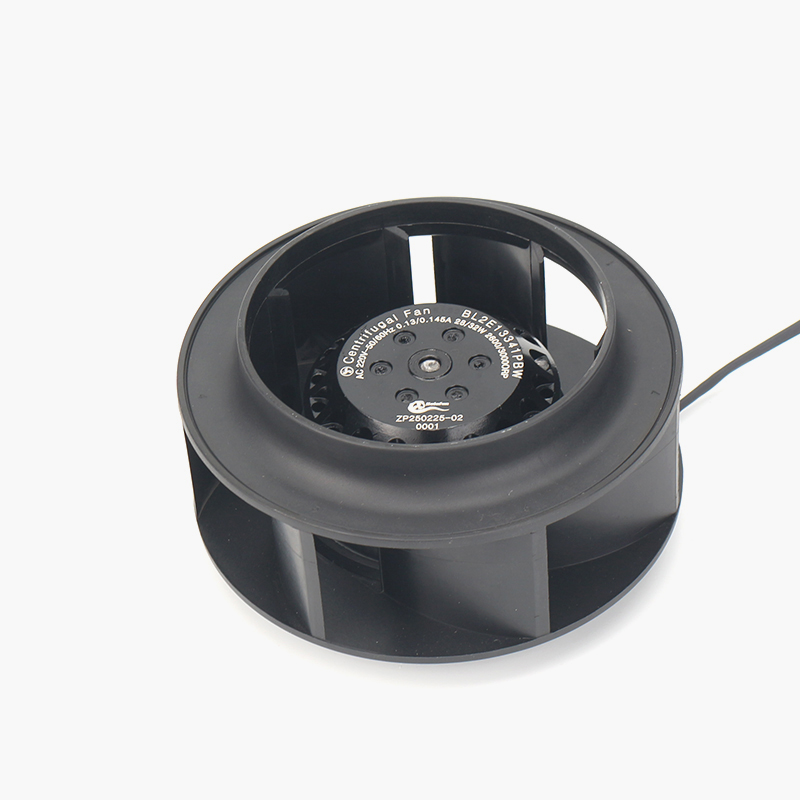

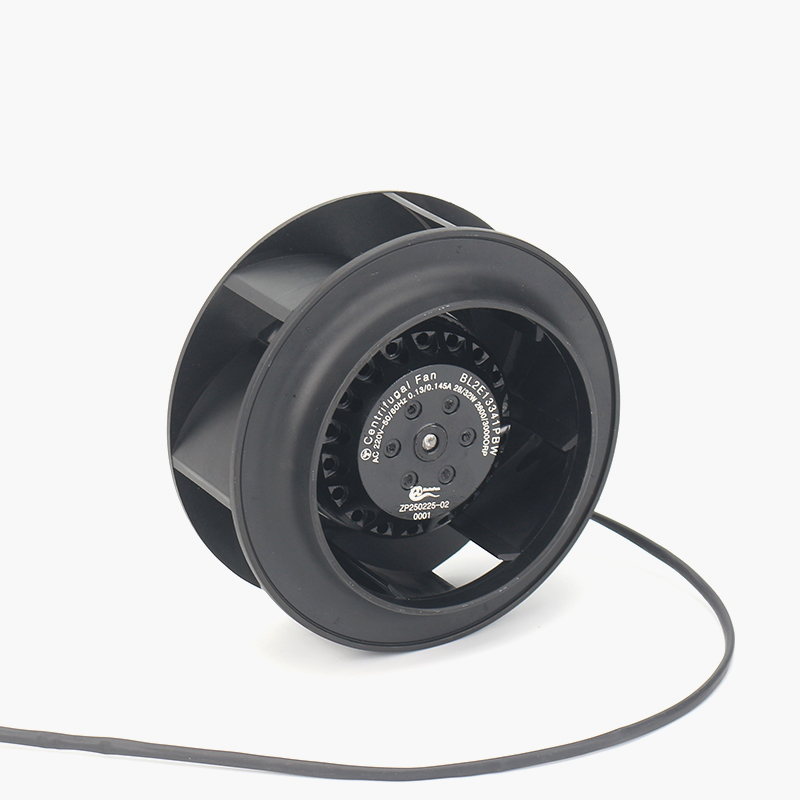

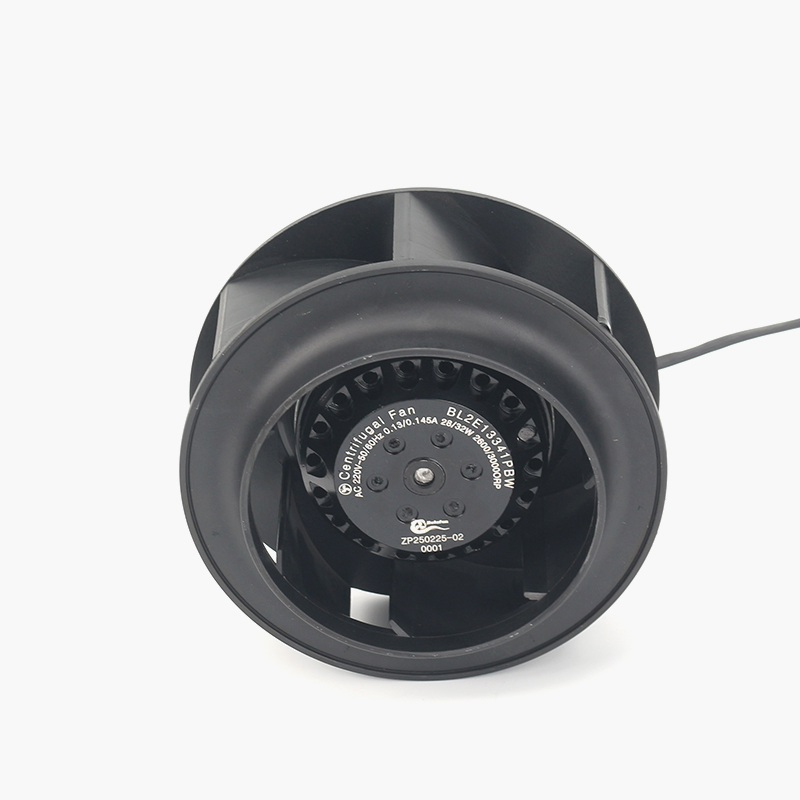

EC 133mm 110VDC Backward Centrifugal Fans

0

(No reviews yet)

SKU: N/A

Motor：External rotor DC motor
Dielectric Resistance：10mA maximum at 600VAc 50Hz one second
Life Expectance：50,000 Hours(L10),At 40’℃ room, humidity 15%~65%RH
Direction of Air Flow：All around,Straight forward from air outlet
Degree of protection：IP44
Weight：3600400g(Faninlet)
Operating Temperature：Fan -25℃(Min.)~60℃(Max.)Ball bearing 80’C(Max.)Heat sink of lc 115℃(Max.)Lead Wire 120′(Max.)Other electronic parts 85℃℃(Max.)

Select Color(s):

Buy it now

Motor：External rotor DC motor
Dielectric Resistance：10mA maximum at 600VAc 50Hz one second
Life Expectance：50,000 Hours(L10),At 40’℃ room, humidity 15%~65%RH
Direction of Air Flow：All around,Straight forward from air outlet
Degree of protection：IP44
Weight：3600400g(Faninlet)
Operating Temperature：Fan -25℃(Min.)~60℃(Max.)Ball bearing 80’C(Max.)Heat sink of lc 115℃(Max.)Lead Wire 120′(Max.)Other electronic parts 85℃℃(Max.)

No reviews available yet.
