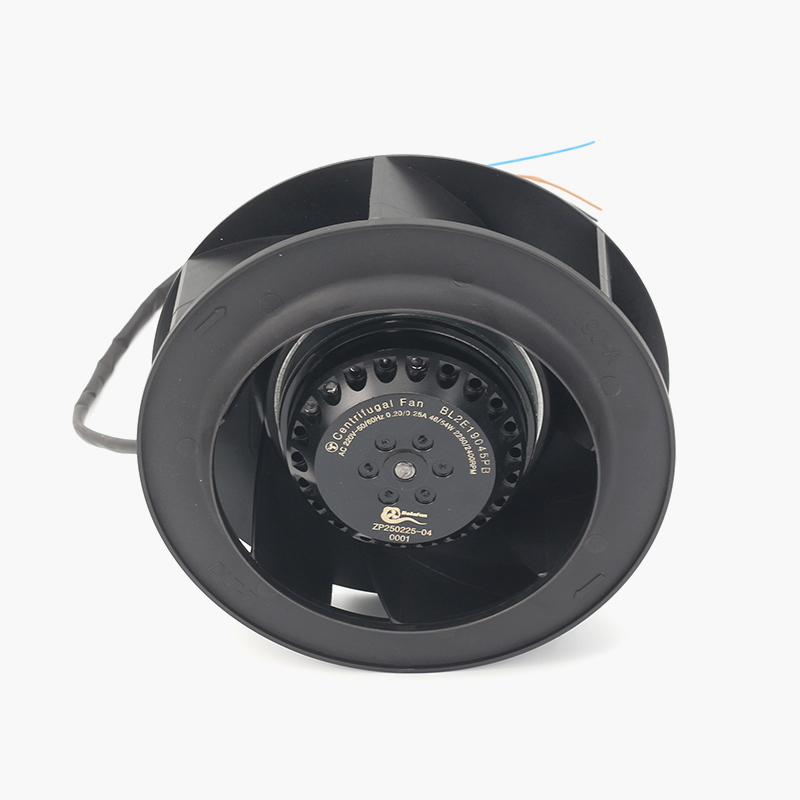

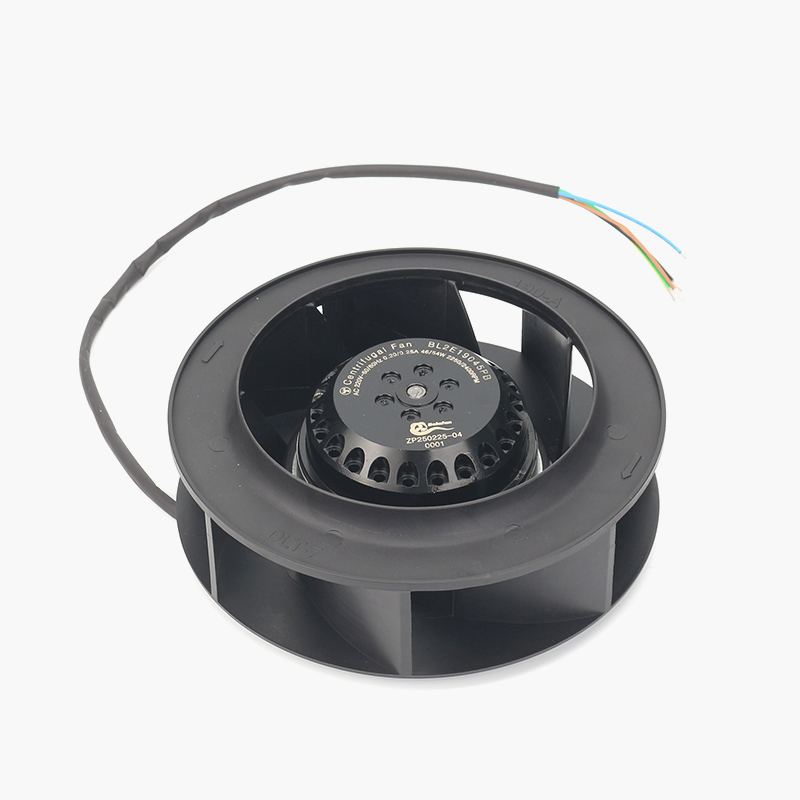

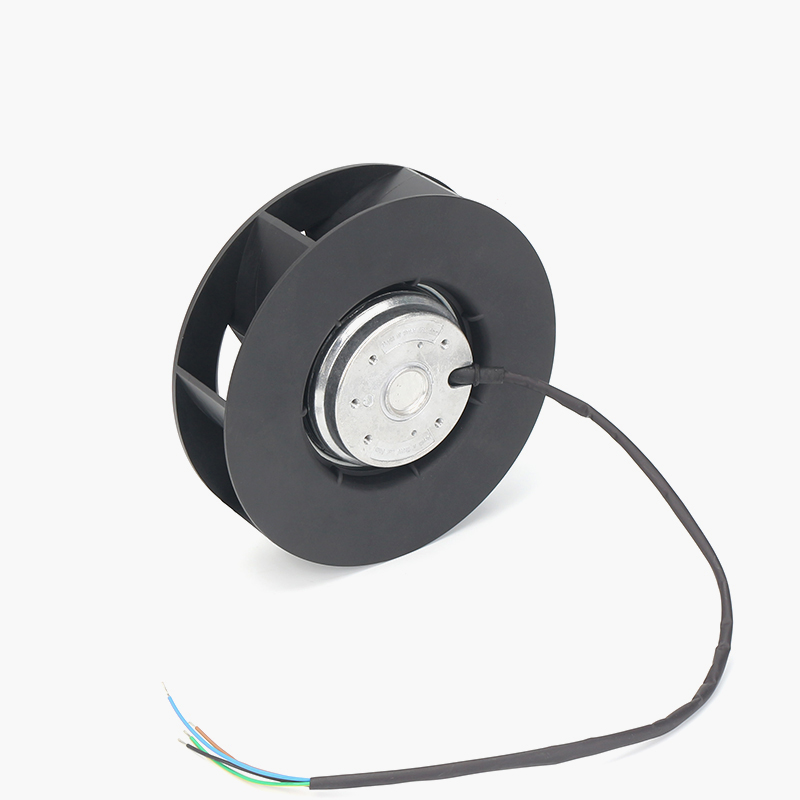

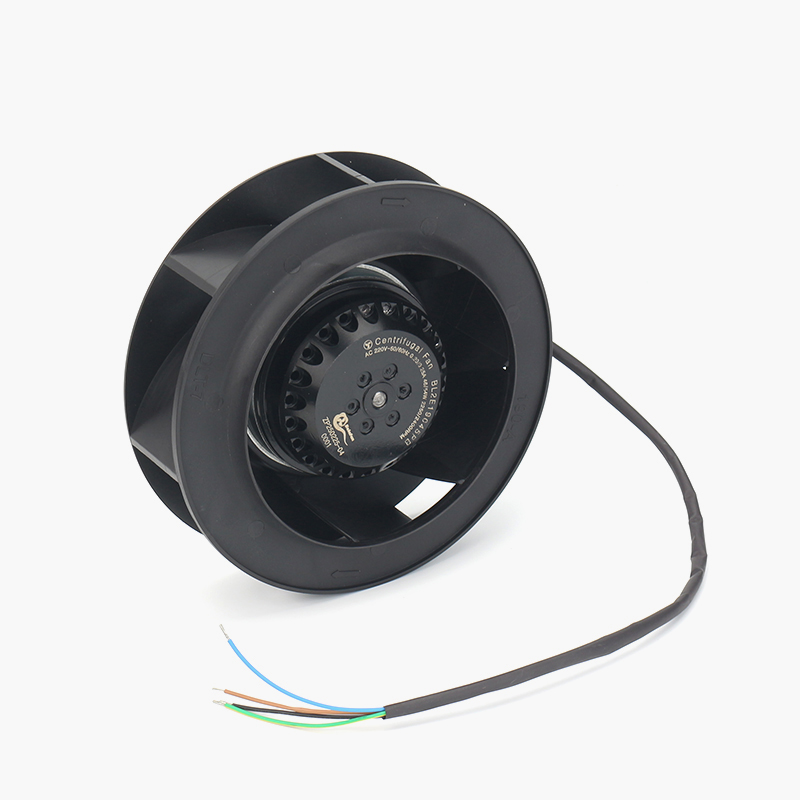

EC 190mm 110VDC Backward Centrifugal Fans

0

(No reviews yet)

SKU: N/A

Motor :External rotor DC motor
Dielectric Resistance :10mA maximum at 600VAc 50Hz one second
Life Expectance :50,000 Hours(L10), At 40℃ room, humidity 15%~65%RH
Direction of Air Flow :All around,Straight forward from air outlet
Degree of protection :IP44
Weight :3600/400g(Fan/inlet)
Operating Temperature :Fan :-25℃℃(Min.)~60℃(Max.)Ball bearing :80℃(Max. )Heat sink oflc :115℃(Max.)Lead Wire :120℃(Max.)Other electronic parts : 85℃℃(Max. )

Select Color(s):

Buy it now

Motor :External rotor DC motor
Dielectric Resistance :10mA maximum at 600VAc 50Hz one second
Life Expectance :50,000 Hours(L10), At 40℃ room, humidity 15%~65%RH
Direction of Air Flow :All around,Straight forward from air outlet
Degree of protection :IP44
Weight :3600/400g(Fan/inlet)
Operating Temperature :Fan :-25℃℃(Min.)~60℃(Max.)Ball bearing :80℃(Max. )Heat sink oflc :115℃(Max.)Lead Wire :120℃(Max.)Other electronic parts : 85℃℃(Max. )
