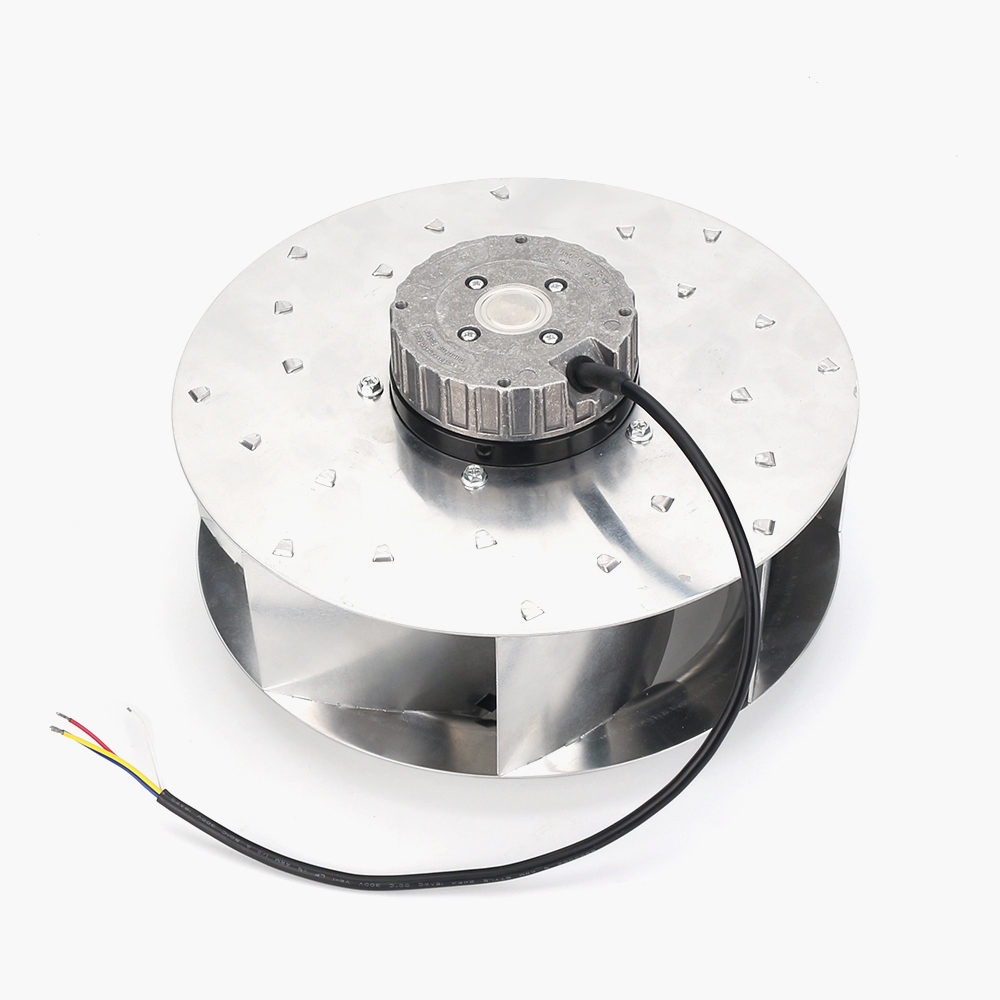

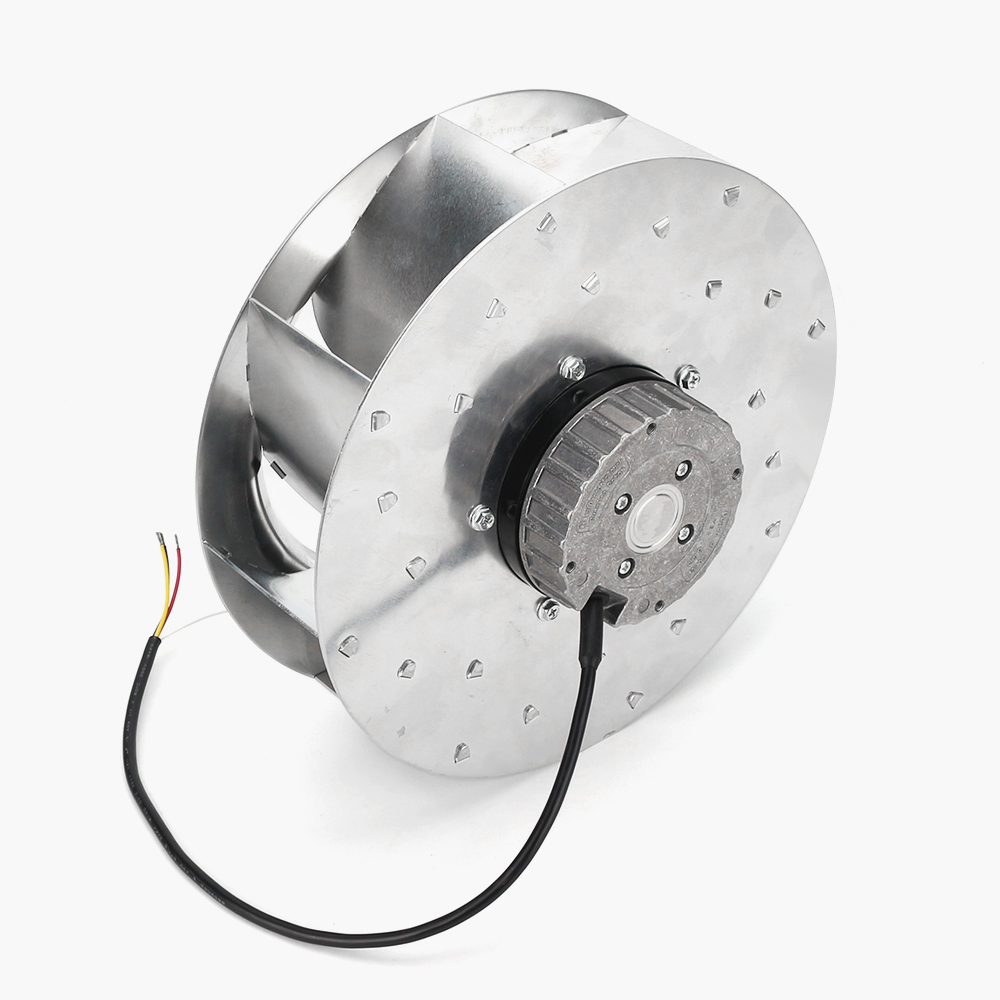

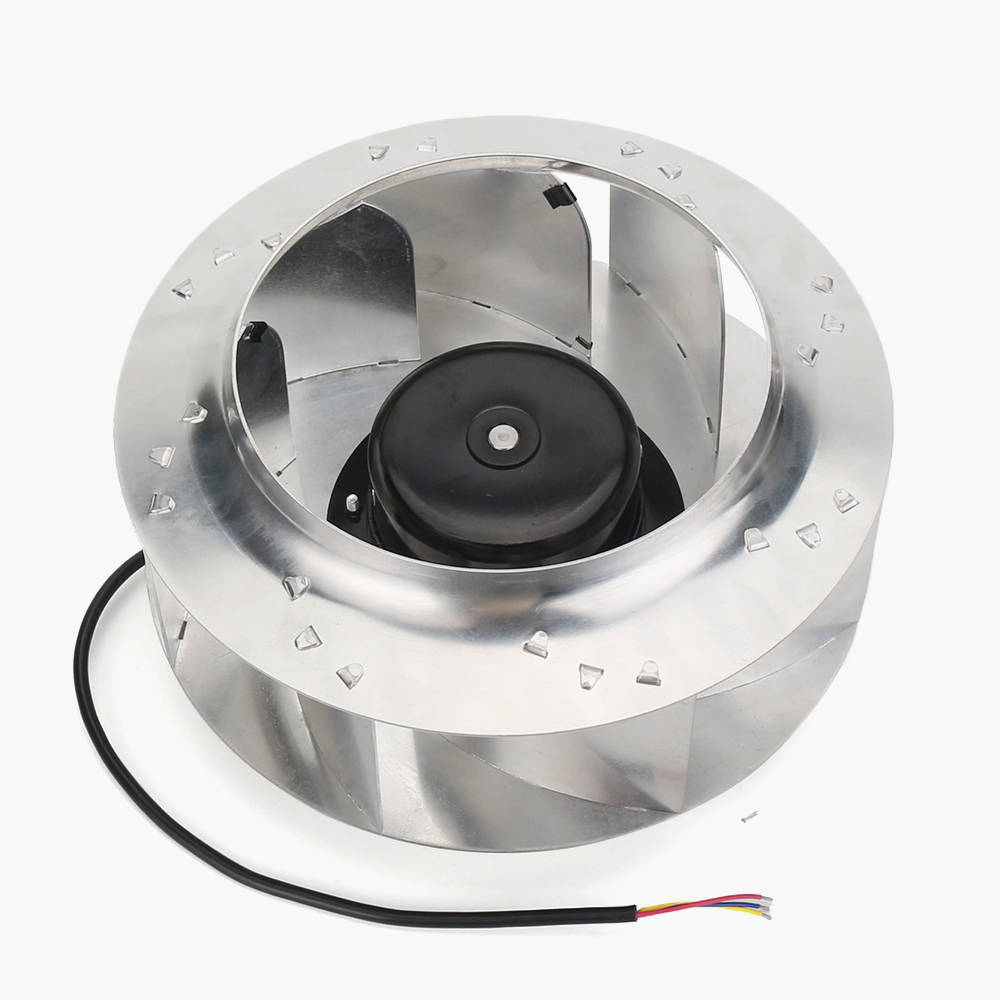

EC 280mm 80VDC Backward Centrifugal Fans

0

(No reviews yet)

SKU: N/A

Motor :External rotor DC motor
Dielectric Resistance :10mA maximum at 600VAC 50Hz one second
Life Expectance :50,000 Hours(L10),At 40℃℃ room, humidity 15%~65%RH
Direction of Air Flow :All around,Straight forward from air outlet
Degree of protection :IP44
Weight :3600/400g(Fan/inlet)
Operating Temperature :Fan :-25’℃(Min.)~60’℃(Max.)Ball bearing :80’c(Max.)Heat sink of lc :115℃(Max.)Lead Wire :120℃(Max.)Other electronic parts :85’c(Max.)

Select Color(s):

Buy it now

Motor :External rotor DC motor
Dielectric Resistance :10mA maximum at 600VAC 50Hz one second
Life Expectance :50,000 Hours(L10),At 40℃℃ room, humidity 15%~65%RH
Direction of Air Flow :All around,Straight forward from air outlet
Degree of protection :IP44
Weight :3600/400g(Fan/inlet)
Operating Temperature :Fan :-25’℃(Min.)~60’℃(Max.)Ball bearing :80’c(Max.)Heat sink of lc :115℃(Max.)Lead Wire :120℃(Max.)Other electronic parts :85’c(Max.)
